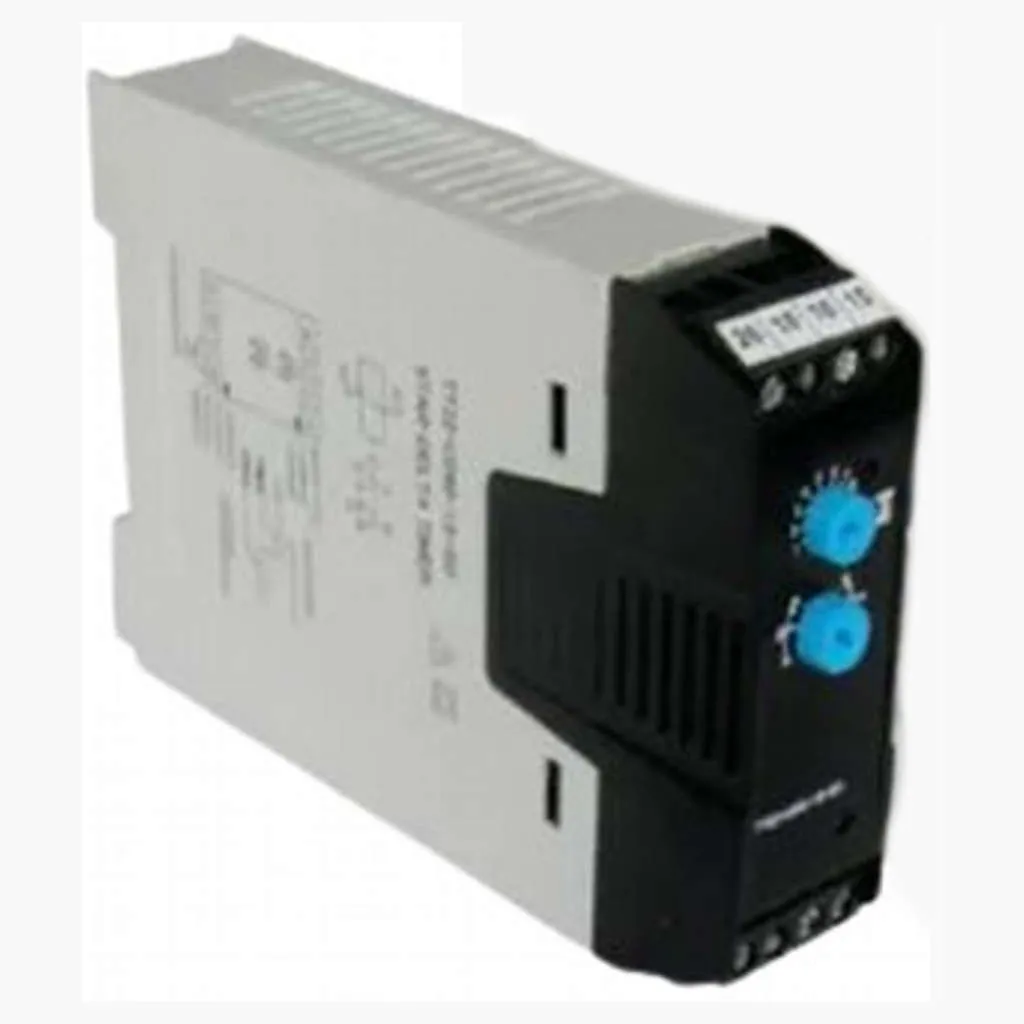

Product Description
-
Independent ON delay and interval selectable
-
10 time ranges from 0.1s to 30h
Product Specification
|
Brand |
Trinity |
|
Product Type |
Analog Timer |
|
Product Model |
TT22-A230-1S-OI |
|
Size |
22.5 mm |
|
Power Supply Voltage |
230 VAC/DC |
|
Frequency |
50/60Hz |
|
Reset Voltage |
10% Of Rated Voltage |
|
Power Consumption |
230 VAC |
|
Control Output |
1S |
|
Input Supply Type |
Alternate Current |
|
Type Of Connection |
Screw Connection |
|
Connector Cross Section Solid(Minimum / Maximum) |
0.2/4.0 mm² |
|
Conductor Cross Section Stranded(Minimum / Maximum) |
0.2/2.5 mm² |
|
Tightening Torque |
0.5-0.6 Nm |
|
Colour |
Grey(Base),Black(Cover) |
|
Dimension W x H x D |
22.5 x 103 x 75.4 mm |
|
Weight |
Approx.110g |
|
Warranty |
As per The Manufacturer Teams & Condition |
